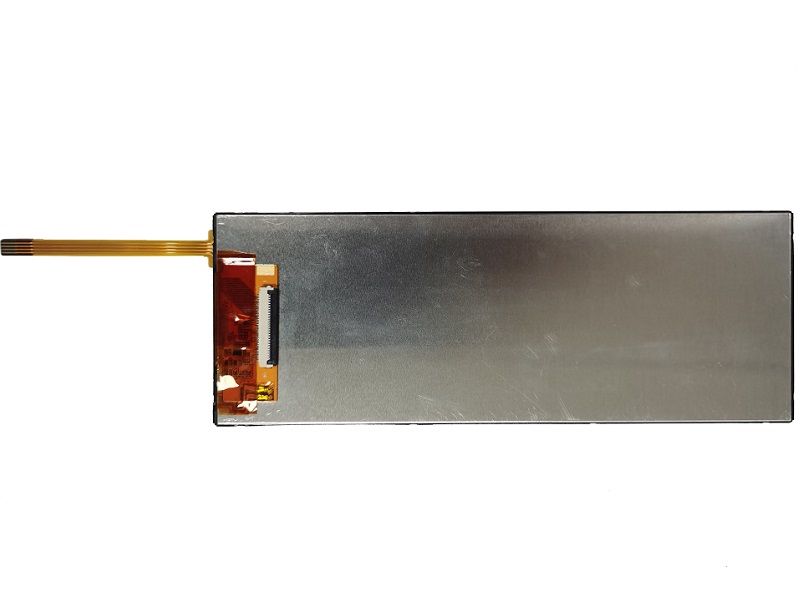

RL068T4145-34A

Pin NO

Symbol

I/O

Function

Remark

1

GND

P

Power Ground

2

D0P

I/O

+0 MIPI differential data input

3

D0N

I/O

-0 MIPI differential data input

4

GND

P

Power Ground

5

D1P

I

+1 MIPI differential data input

6

D1N

I

-1 MIPI differential data input

7

GND

P

Power Ground

8

CLKP

I

+CLK MIPI differential clock input

9

CLKN

I

-CLK MIPI differential clock input

10

GND

P

Power Ground

11

D2P

I

+2 MIPI differential data input

12

D2N

I

-2 MIPI differential data input

13

GND

P

Power Ground

14

D3N

I

-3 MIPI differential data input

15

D3P

I

+3 MIPI differential data input

16~17

GND

P

Power Ground

18~19

IOVCC_1V8

P

Power Voltage for digital circuit (1.8/3.3V)

20~23

NC

-

No connection

24

LCM_REST

-

Reset Signal pin (“Low” is enable)

25~26

NC

-

No connection

27

GND

-

Power Ground

28~29

LEDK

P

Backlight LED Cathode

30

GND

P

Power Ground

31

NC

-

No connection

32~33

GND

p

Power Ground

34

NC

-

No connection

35~36

LEDA

P

Backlight LED Anode.

37

GND

P

Power Ground

38~39

VDD_3V3

P

Power for Analog Circuit (3.3V)

40

NC

-

No connection
